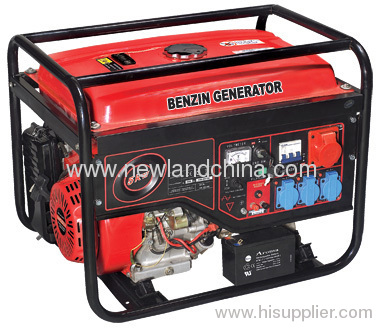

Gas engine three phase generator with 5kW/6kW output NL6500DXB(E) manufacturer from China TAIZHOU NEWLAND MACHINERY CO.,LTD

Payment Terms:	T/T,L/C,D/A,D/P,WU,
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: NL6500DXB(E)

Production Capacity: 20000SETS/MONTH

Delivery Date: 25-30DAYS

Brand Name: NEWLAND

Frequency: 50hz

Rated Voltage: 230V/380V

Exported countries: Germany,Finland,Poland,Itla...

Means of Transport: Ocean,Land,Air,

Packing: carton packing,136set/20ft,...

Output Type: AC 3 Phase

Speed: 3600rpm

Rated Power: 5kW/5.5kW

HS CODE: 850220

5kW/5.5kW three phase
Gasonline engine
LPG,Natural can be optional
ATS optional

	NL6500DXB(E)
Model	5.0-5.5KW	5.5-6.0KW
Engine	188F	190F
Type	1-cylinder,4-stroke,Air-cooled gasoline engine
Work capacity	389cc	407cc
Max.output	13HP/3600rpm	15HP/3600rpm
Ignition system	Non-contact transistor
Starting system	Recoil/electric	Recoil/electric
Fuel tank capacity	25L	25L
Continous operating time	14 hours	14 hours
Engine oil system capacity	1.1L	1.1L
Phase	three phase	three phase
Noise	74dB(A)	74dB(A)
A.C.frequence	50hz
Rated Voltage	3x230V+1x380V
Max.A.C.output	5.5KW	6.0KW
Rated A.C.output	5.0KW	5.5KW
Size and weight
Overall dimension	690x525x550mm	690x525x550mm
Dry weight	78KGS	79KGS
Container quantity (20ft/40HQ)	136sets/292sets	136sets/292sets
